Description

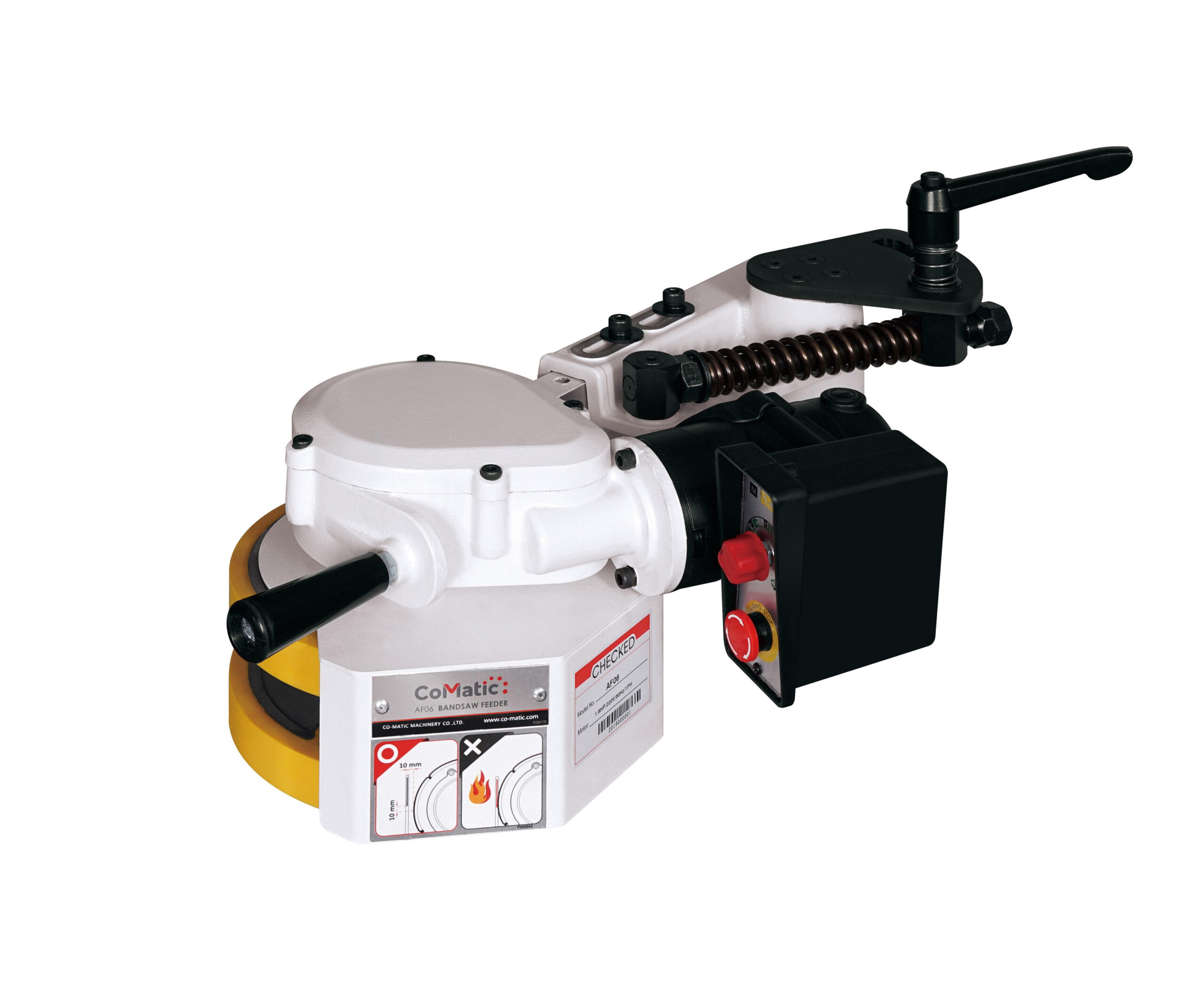

This bandsaw power feeder by Co-Matic is made in Taiwan and is a larger hobby grade feeder than the 02 model. This one weighs 17.5 KG all up and has urethane coated feed rollers at 200mm dia. The larger diameter rollers offer more contact area on the timber.
Height to top of rollers is ~92mm.
This power feeder does NOT come with any fence, you use the existing fence on your bandsaw or make your own taller fence for resawing.
It will fit on small bandsaws, some 14″ machines and up from there.
Install size guidance: The AF06 suits machines with dimension from front of blade (roller center) to back right hand corner of table of ~350 to 490mm. It has an adjustable length main arm.
Variable speed, 1.5 to 12 M/min.
Supplied as Single phase 220-240V, with an Australian plug on it, ready to go.
You can download the Spec Sheet HERE> AF06 Specification
